38' Northern Bay (Thursday Post #1)

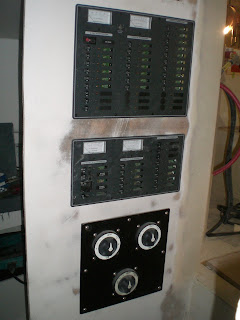

Front side of the 12 volt panel, 110 AC panel, and battery switches next to the back side of the 12 volt panel, 110 AC panel, and battery switches. Not finished and not as neat as it is going to be but I think you are starting to get the picture. This is much easier than it looks just cut the wire to length crimp an end on and connect. Do that 300 to 400 times and BOOM, completed electrical system. Things I fail to mention in my explanation: correct wire sizes, correct fuse sizes, maximizing limited space, back lit panels, shunts used to measure 12 volt amperage being used, 110 AC outlets getting power from an inverter or through an inverter (from a generator or shore power).

The overhead in the forward cabin is set for head liner. Wherever the is plywood now there will be teak in the future. Gaps will be filled with wires for lights and a fan. Headliner will be glued to 1/8" plywood and will be installed in panels with all the seams hidden by 2" pieces of teak. While I'm talking about the forward cabin Jeff, Dan Jr., and I spent all day yesterday sanding everything that needed to be prepared for paint. Once smooth everything will be primed then painted with a Hatteras Off-White flattened to a semi-gloss finish.

Deck hatches have been glassed in and all the covers have been built. There is a starboard shelf that you can barely see in the cabinet on the right. I was going to say the starboard shelf in the starboard cabinet but it did not read well. You see, the starboard side of the boat is the right side (when looking forward) and starboard is a brand of plastic used on boats. I could have capitalized the S in starboard (plastic) but that could have been misleading and surely it wouldn't have gotten the point across that there were two different usages of the same word in the same sentence. I was unsure how I was going to fill the space to the left of this picture........crisis avoided.

Head and shower area primed and painted. Digital photography with flash makes telling that this color is anything but white difficult. And the reflection of the flash is making it look like the paint is super shiny when it isn't. The color will look better once the teak (in the back of the truck) has been installed. For those of you that don't know, teak is really expensive. In fact the teak in the bed of this truck is worth more than the truck.

Organization is the key to success. Now that the systems are being punched out, getting my hands on the right manual in a timely fashion is very important. We've been collecting instruction manuals for a while and the old filing system (piles of paper) had ceased working. This will also make thing easier for the owner once the boat is in the water.
